Product Details
.jpg)

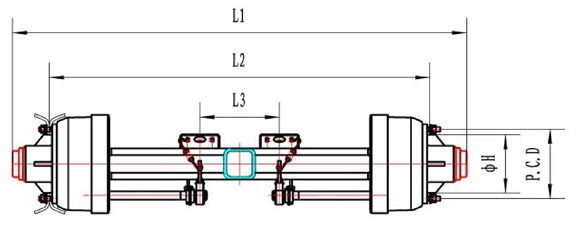

| Axle Type | Max. | "S" Cam Brake | Track | Distance of | Axle Beam | WHEEL FIXING | PCD | ΦH | Total Legnth | Recommended wheel | Weight | The Bearings Installation |
| Capacity | Series x Width | L2 | Slack Adjuster | Stud | L1 | |||||||
| L3 | ||||||||||||
| Kg | mm | mm | mm | mm | mm | mm | mm | inch | Kg | |||
| HS13B1-00 | 13,000 | S 420X180 | 1840 | 382 | □150 | 10XM22X1.5 ISO | 335 | 281 | ≈2198 | 7.50V-20 | ≈363 |
Outside HM518410/45 Inside HM518410/45 |
| HS15B1-00 | 15,000 | S 420X180 | 1850 | 394 | □150 | 10XM22X1.5 ISO | 335 | 281 | ≈2218 | 8.00V-20 | ≈398 |
Outside HM518410/45 Inside HM220110/49 |
| HS15B2-00 | 15,000 | S 420X200 | 1850 | 382 | □150 | 10XM22X1.5 ISO | 335 | 281 | ≈2184 | 8.00V-20 | ≈418 |
Outside HM518410/45 Inside HM220110/49 |
| HS16B2-00 | 16,000 | S 420X200 | 1850 | 352 | □150 | 10XM22X1.5 ISO | 335 | 281 | ≈2200 | 8.00V-20 | ≈420 |
Outside HM518410/45 Inside HM220110/49 |
| HS16B3-00 | 16,000 | S 420X220 | 1850 | 350 | □150 | 10XM22X1.5 ISO | 335 | 281 | ≈2210 | 8.50V-20 | ≈426 |
Outside HM518410/45 Inside HM220110/49 |
